IPS Intelligent Hardwire Kit
IPS Intelligent Hardwire Kit
Natural Fit
- Intelligent recognition of vehicle status
- 5 layers safety protection
- High temperature flame retardant
- Original design
Intelligent recognition of vehicle status,
better 24-hour parking monitoring
Changing the traditional single wiring, using ACC + constant double wiring technology, after the adaption of DDPAI mini3, it can intelligently determine the vehicle operating status. The dash cam automatically enters 1 frame per second time-lapse mode after the car shuts off, which will increase parking monitoring coverage time and data storage by 30 times, better realize 24-hour parking monitoring.
24h Parking Monitoring
24h Parking Monitoring
Time-Lapse

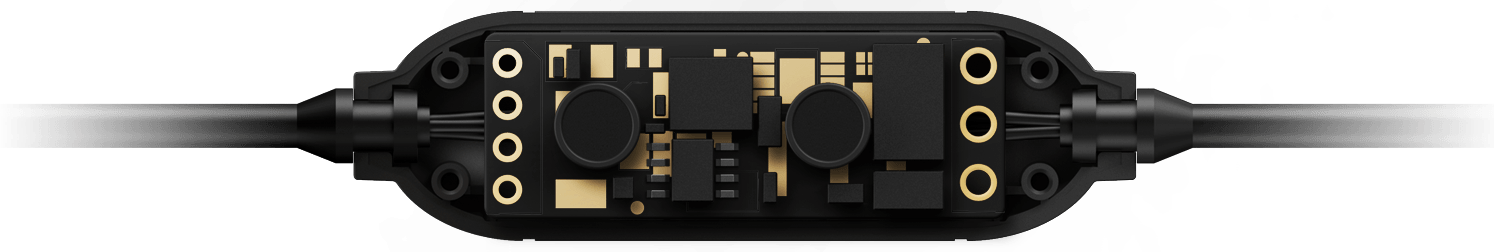

5-layer safety protection, for safe driving
5-layer safety protection, greatly enhance the self-defense capability of the hardwire kit, more intelligent protection for your dash cam and car battery.
Anti Overload
When the current exceeds the pre-set current, the device automatically shuts off to protect the Dash Cam.
Anti Low Battery Voltage
Set up low battery voltage according to the car battery condition, when the voltage is too low, it will cut power to Dash Cam to protect car battery effectively.
Anti Short Circuit
Built-in output short-circuit protection unit, when the output port is short-circuited, it automatically cuts off to prevent device damage, and automatically recovers when the fault is removed.
Anti Over Current
Auto-distribution of current prevents large currents from damaging the Dash Cam.

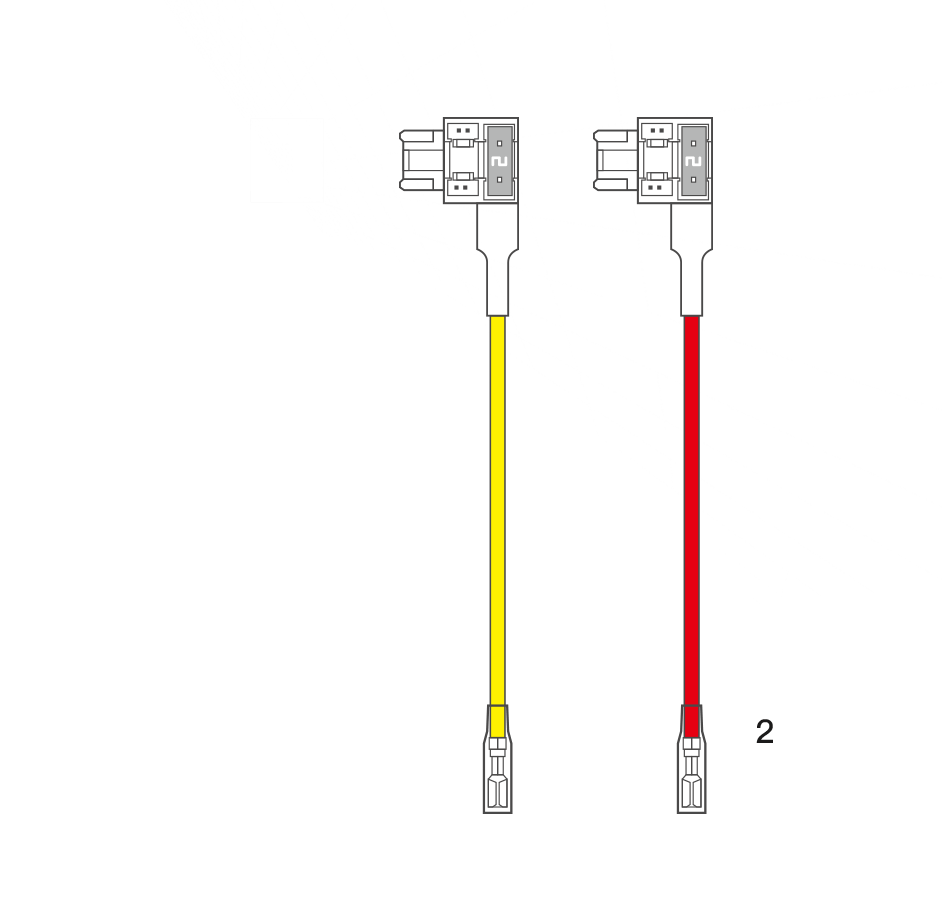

No break-in installation, safer and more reliable
Drawing power from fuse box, completely invisible wiring, it does not occupy cigarette lighter, nor interface other external devices usage. No cable breaking installation, comes with the voltage setting, the owner can set a reasonable voltage value to protect the car battery according to the vehicle condition, safer and more reliable driving recording.
No break-in installation, safer and more reliable
Drawing power from fuse box, completely invisible wiring, it does not occupy cigarette lighter, nor interface other external devices usage. No cable breaking installation, comes with the voltage setting, the owner can set a reasonable voltage value to protect the car battery according to the vehicle condition, safer and more reliable driving recording.
High-fire-retardant material, thick wire, high-and low-temperature resistant, more stable
Using High-strength ABS flame-retardant material, pure 22 copper core, thicker than the general wire in market, large flow capacity, good electrical and thermal conductivity, Wire rod has been tested for a number of rigorous indicators such as tensile strength, twist, aging and high and low temperature.

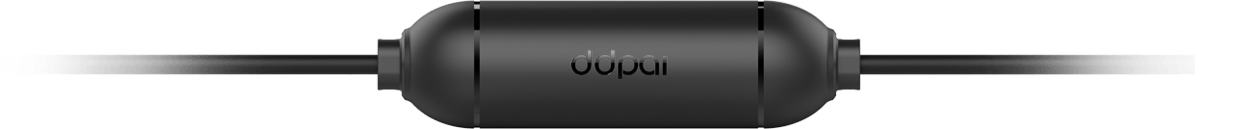

Original design, distinguishing texture
Change the traditional hardwire kit's large and wide shape, original sleek and compact design, matte black color, delicate touch, highlight brand logo, distinctive texture.
Specifications
Core Hardware
Input Voltage：DC 12V- 24V (Switch frequency 350KHZ)
Input Current：No-load current≤ 1mA, load current≤ 1.5mA
Parking Monitoring：Support detection of car on/off status, and inform Dash Cam (Communication via serial port)
Low-voltage Protection：Setup protection threshold via App, default is 11.8V (Communication via serial port)
Short-circuit Protection：Support short-circuit protect, auto recover
Input Terminal：Anti- reverse wiring
Output Voltage：Load voltage 4.7V-5.3V, no-load voltage 5V-5.5V
Output Current：4.7V 1.5A over-current protection point is less than 2A
LED Indicator：No
Output Ripple：≤100mV
Cable
Length：Front 1m, rear 2.5m

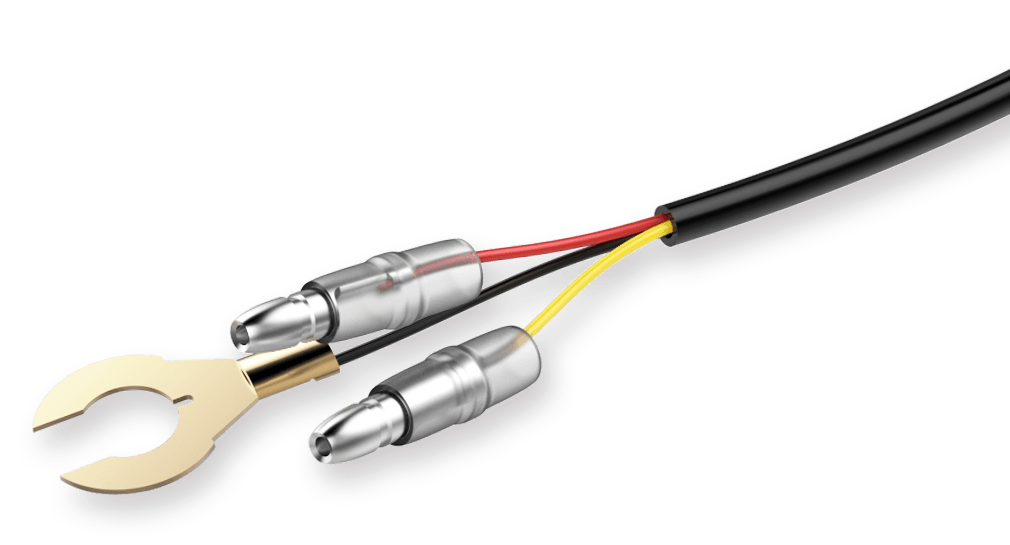

Input Jack：Full 22 cooper cord, bullet jack, positive: yellow; negative: black; ACC: red (connect to fuse tab)
Output Jack：Micro USB
Outer ：3.5mm in outer diameter

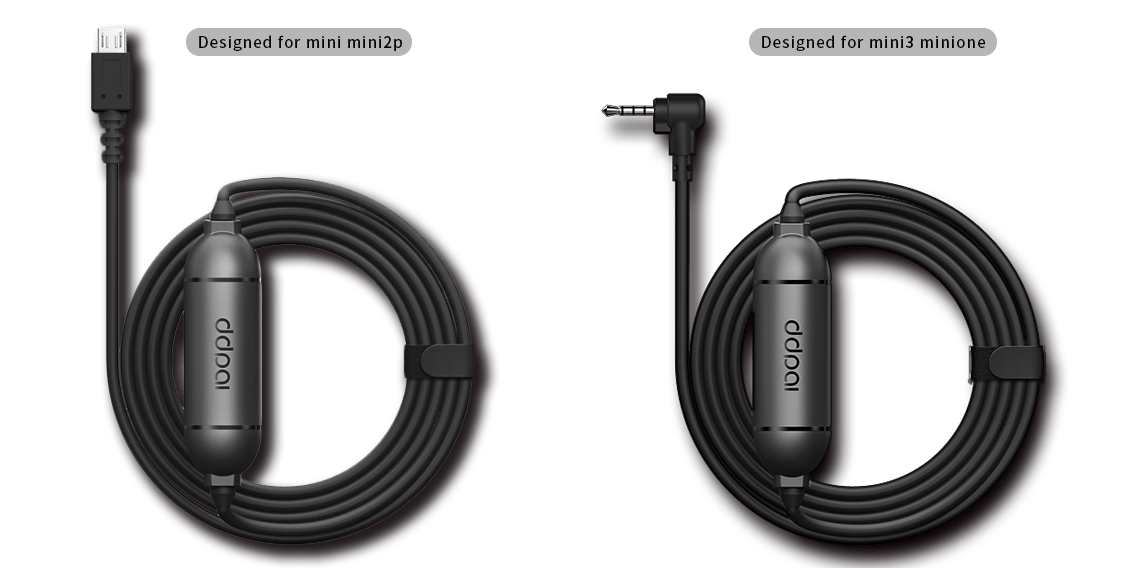

Micro USB：Right angle in mini3 (Follow-up support for other models)
